Introduction

Control & Relay Panels facilitate centralised Control of the related controlled equipment in power stations, switching stations and Industrial plant. To prank’s design of control & relay panels are based on the concept of unit assembly from standard parts. The panels are bolted together to form a board. This approach permits replacements, extensions, rearrangement and addition when necessary.

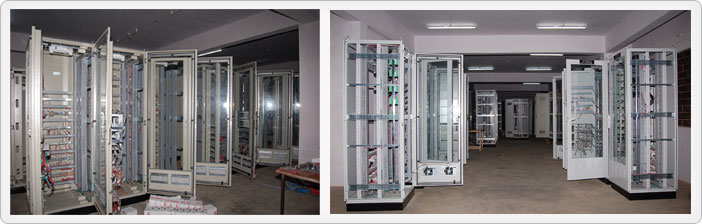

Construction

The panel is built up of 6 separate sheets which Consist of front panel, two side panels, door Frame, door and roof providing rigidity and Strength. The panel has a standard dimension of height : 2250mm, width : 600mm, 850mm & 1000mm and depth : 600mm & 800mm. Various alternative arrangements are available
